Forged 4340 EN24 Connecting Rods compatible for BMW E36 E46 328i 325i M52B28 Conrods

Name: Forged 4340 EN24 Connecting Rods compatible for BMW E36 E46 328i 325i M52B28 Conrods
SKU: 3002069045
Price: 685.00 EUR
Availability: InStock

€815.15 - €685.00 (ex. VAT)

Select delivery location

Add to wishlist

Compare

SKU: 3002069045 Category: Compatible for BMW Conrods

Easy Returns & Replacements

Any reported issues of damage in transit or DOA processed within 48hrs.

Global Tracked Shipping

Delivery is generally within 5-7 working days (UK & EU), depending on your location (AMER, 7-10 Days & APAC 10-14 Days).

1 year Manufacturer Warranty

Quality comes first and our products are designed & manufactured to last with TUV certification and E-Marked.

.bcco7fd-desc-title {
font-size: 18px;
font-weight: 700;
margin: 10px 0;
}
.bcco7fd-desc-text {
font-size: 16px;
margin: 0;
padding-bottom: 20px;
}

Application

Compatible for BMW 328i 528i E36 E46 M52B28 S52B32 M54B30 S52B30 M50B25

Fitment Details:

Compatible for BMW 3 Series E36 1990-2000 325i 328i

compatible for BMW 3 Series E46 1998-2007 325i 328i 330i 325 Ci 328 Ci 330 Ci 325 xi 328 xi 330 xi

compatible for BMW 5 Series E12 1972-1981 Saloon 528i

compatible for BMW 7 Series E38 1994-2001 Saloon 728i X 728i, iL

compatible for BMW Z3 E36 1997-2003 Coupe 2.8i

compatible for BMW Z3 Roadster E36 1995-2003 Convertible 2.8i

Pin Type: Floating Pin Piston

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

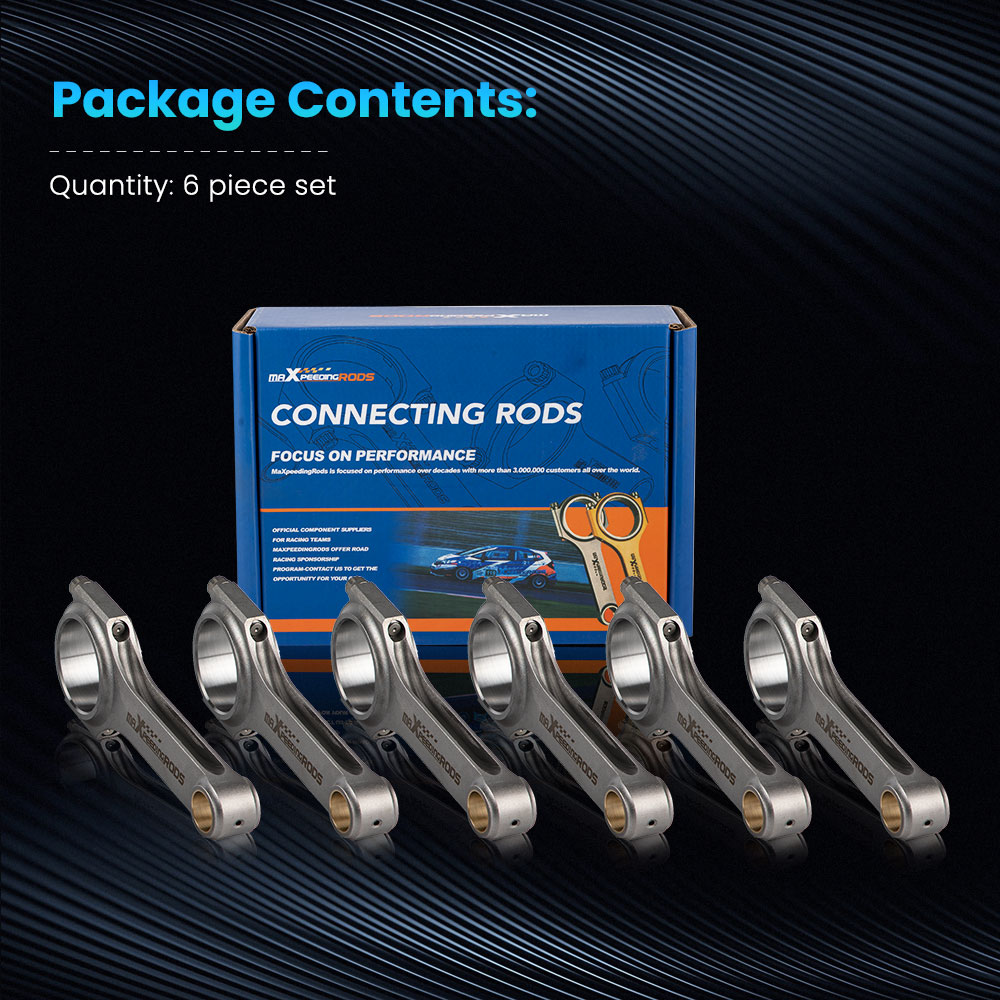

*H-beam Conrods Quantity: 6 Pieces as showing in picture

*Bolts: Including ARP 2000 3/8″ bolts (Note: Extra cost for upgrading to ARP L19 bolts)

*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

*Advertised Horsepower Rating:200HP/piece

*Top acceleration: 9000rpm

*package size：28CM*21CM*14CM

Dimension

Center to center length: 135mm/5.315″

Big end diameter: 48mm/1.89″

Small end diameter: 22mm/0.866″

Big end width: 21.9mm/0.862″

Small end width: 21.9mm/0.862″

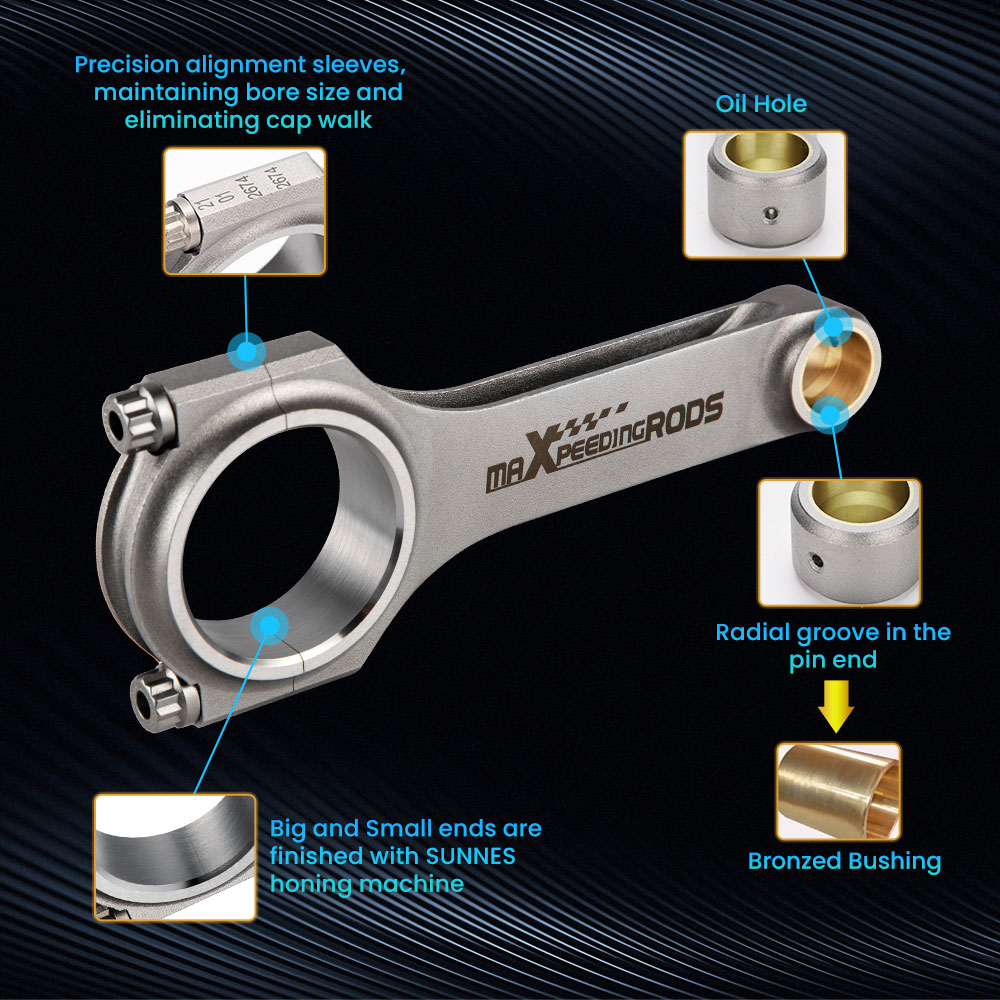

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；

2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；

3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

4. H-Beam design reduces weight without compromising strength；

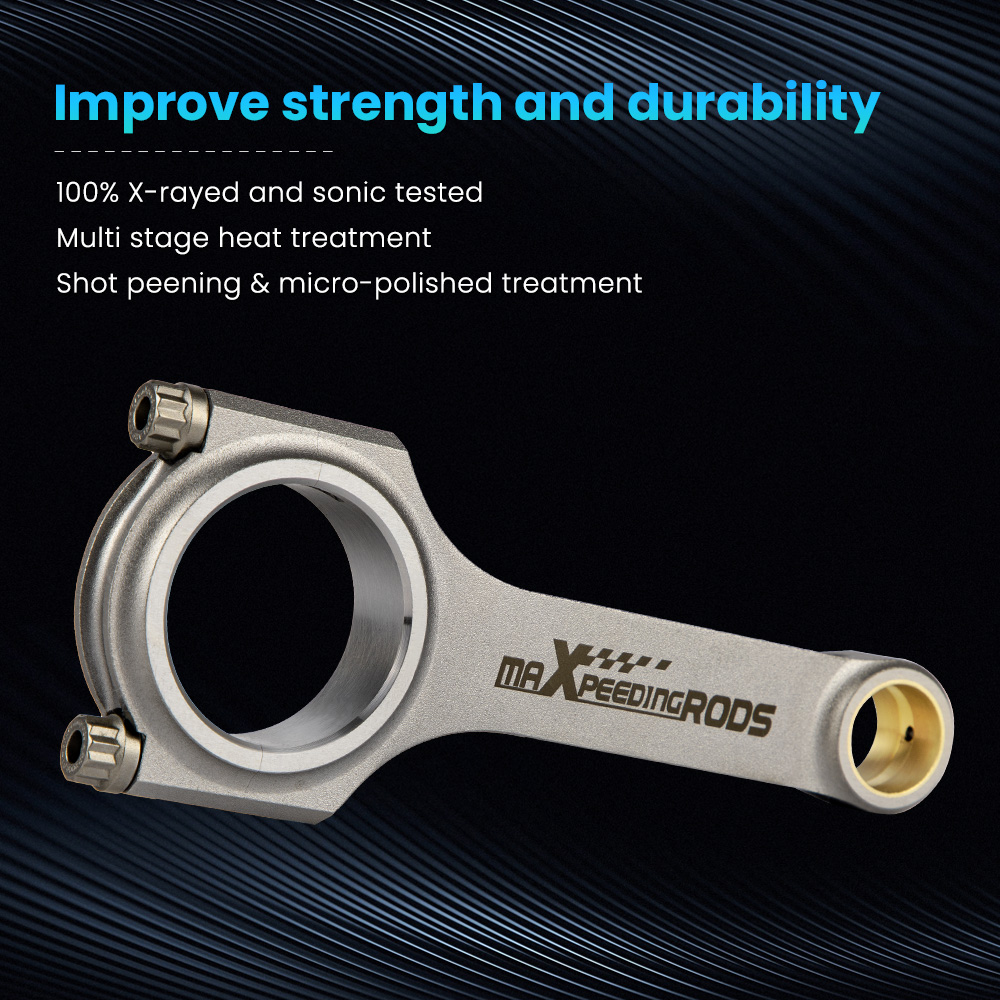

5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；

6.High precision CNC machined,Precision rod cap alignment dowels；

7.Bores finished to +/- .005mm；

8.Balanced to within +/- 1 g per rod；

9. Each rod is magnetic particle tested to ensure free of flaws；

10.Use X-rayed, sonic tested；

11.Custom Service.

Note

*There are titanium-plated upgrade models；

*Professional installation is highly recommended ；

*Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

Weight	3.95 kg
Dimensions	28 × 21 × 14 cm
