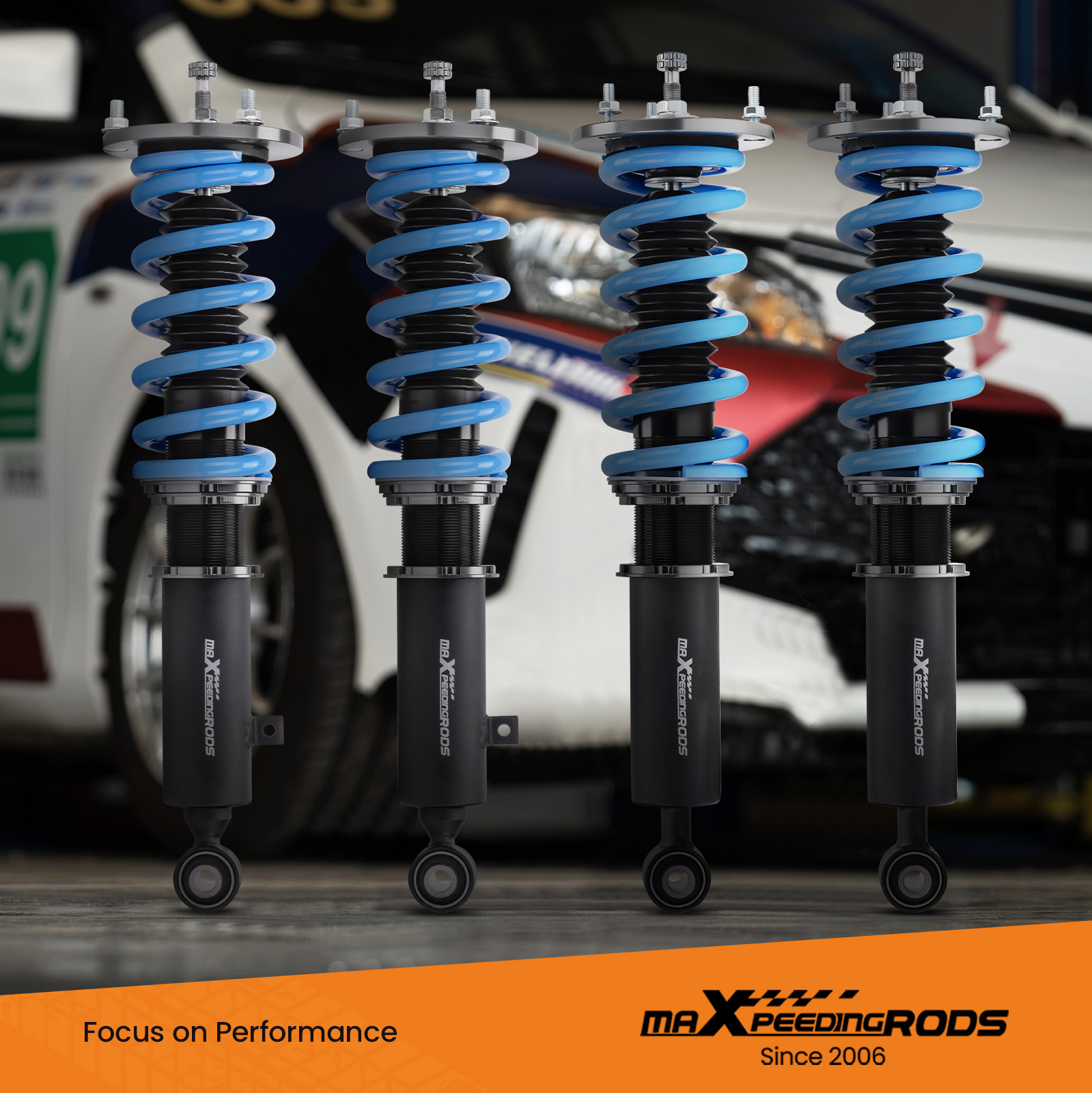

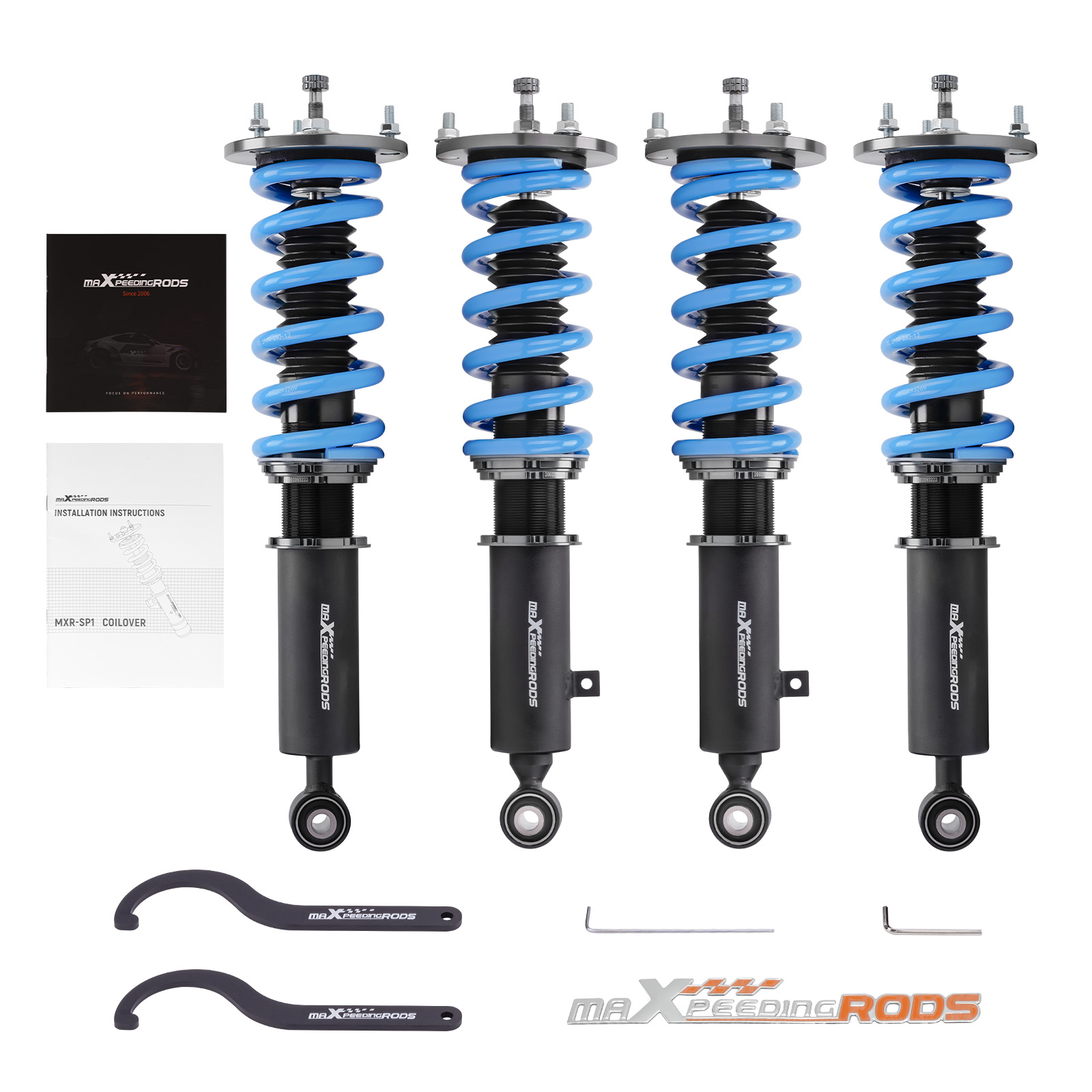

Upgrade Damper Adjustable Coilovers Suspension compatible for Toyota Supra JZA70 MA70 GA70 Lowering Kit

Application

For TOYOTA　SUPRA　1986.01-1990.08　JPN　MA70　GT TURBO, GT TWIN TURBO S

For TOYOTA　SUPRA　1986.01-1993.04　JPN　GA70　G, GT, GT TWIN TURBO

For TOYOTA　SUPRA　1987-1992　USA　MA70L

For TOYOTA　SUPRA　1990.08-1993.04　JPN JZA70　GT, TWIN TURBO, TWIN TURBO R

For TOYOTA　SOARER　1986.01-1991.05　JPN　GZ20　GT TWIN TURBO, TWIN TURBO L, 2.0VX

For TOYOTA　SOARER　1986.01-1991.05　JPN　MZ20　GT, GT LIMITED

Specification

Damping adjustable: Available, 24 levels of rebound damping force

Shock structure type: twin -tube

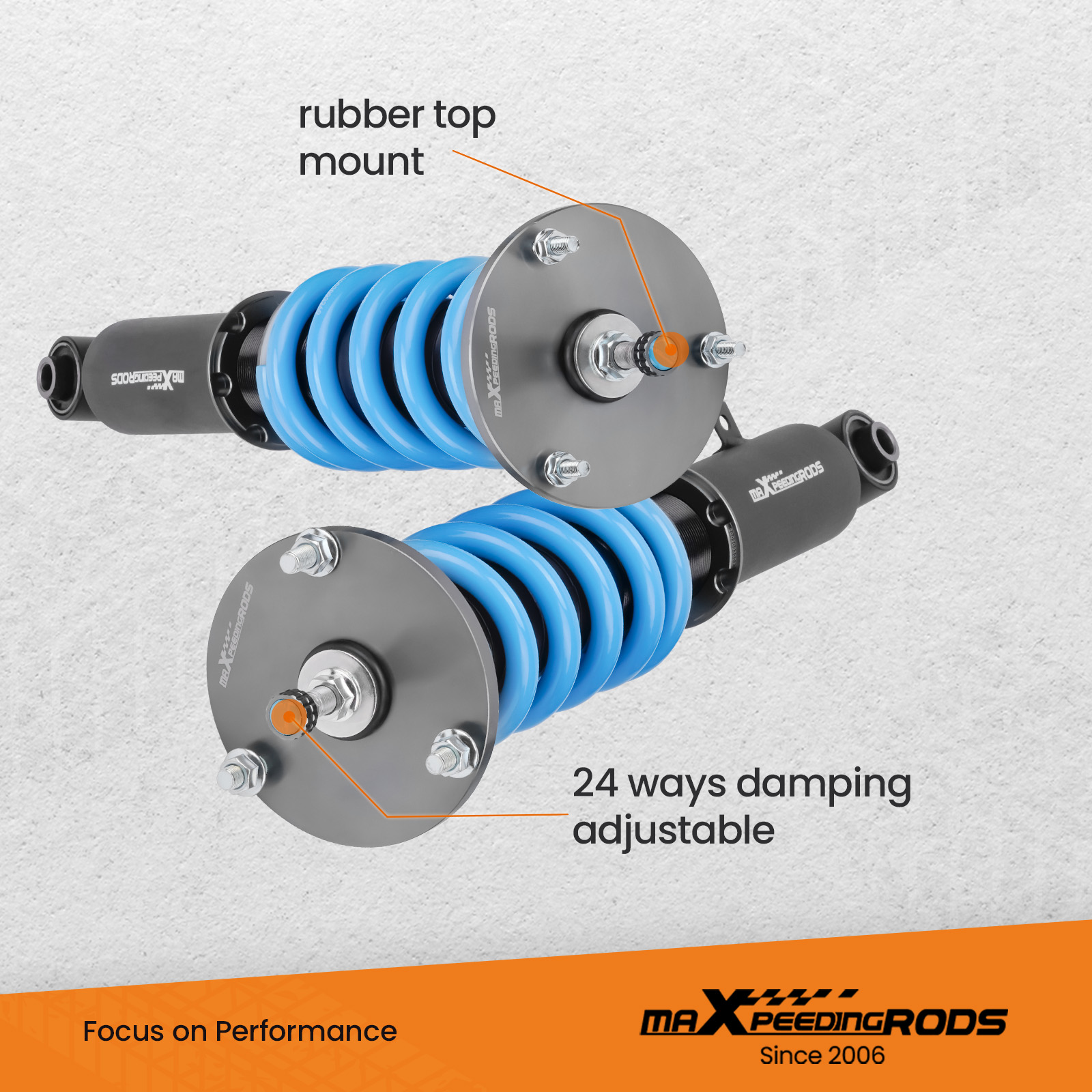

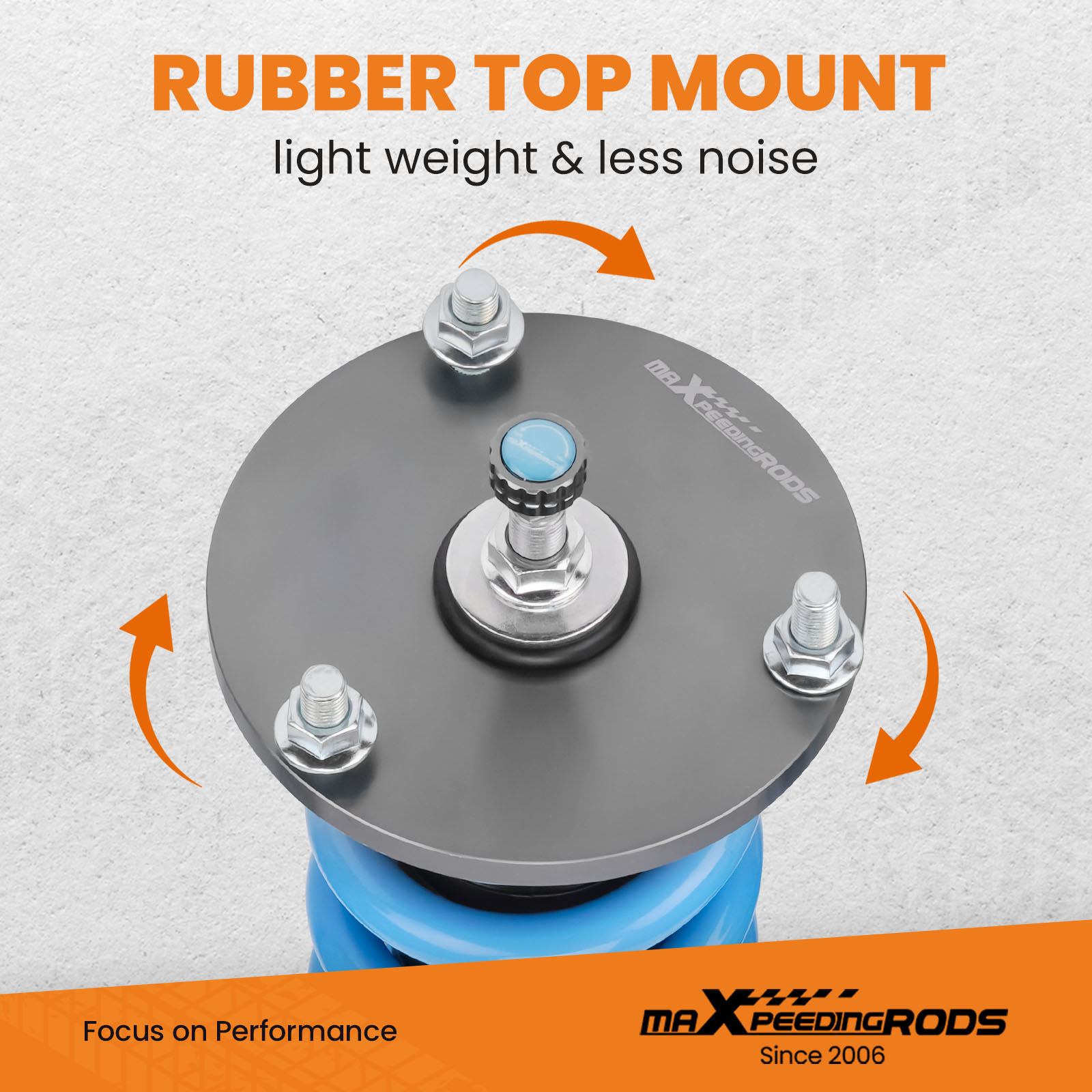

Front top mount structure: Standard rubber

Rear top mount structure: Standard rubber

Camber adjustable: Available

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring Rate Front: 14 kg/mm (784 lbs/in)

Spring Rate Rear: 12 kg/mm (672 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 230 mm

Spring length Rear: 230 mm

Spring Preload advised: 7-10 mm

Color: Black body with blue spring

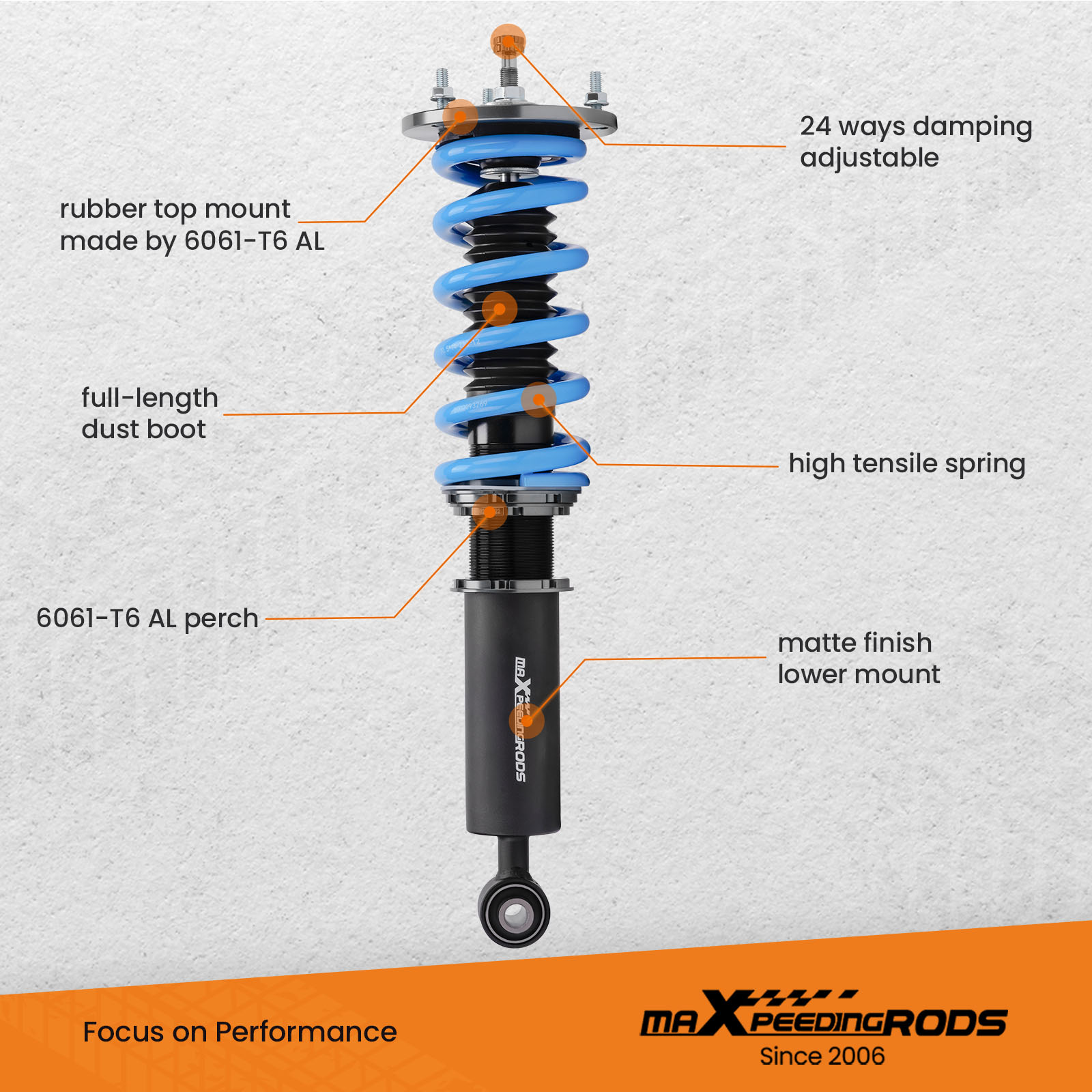

Features

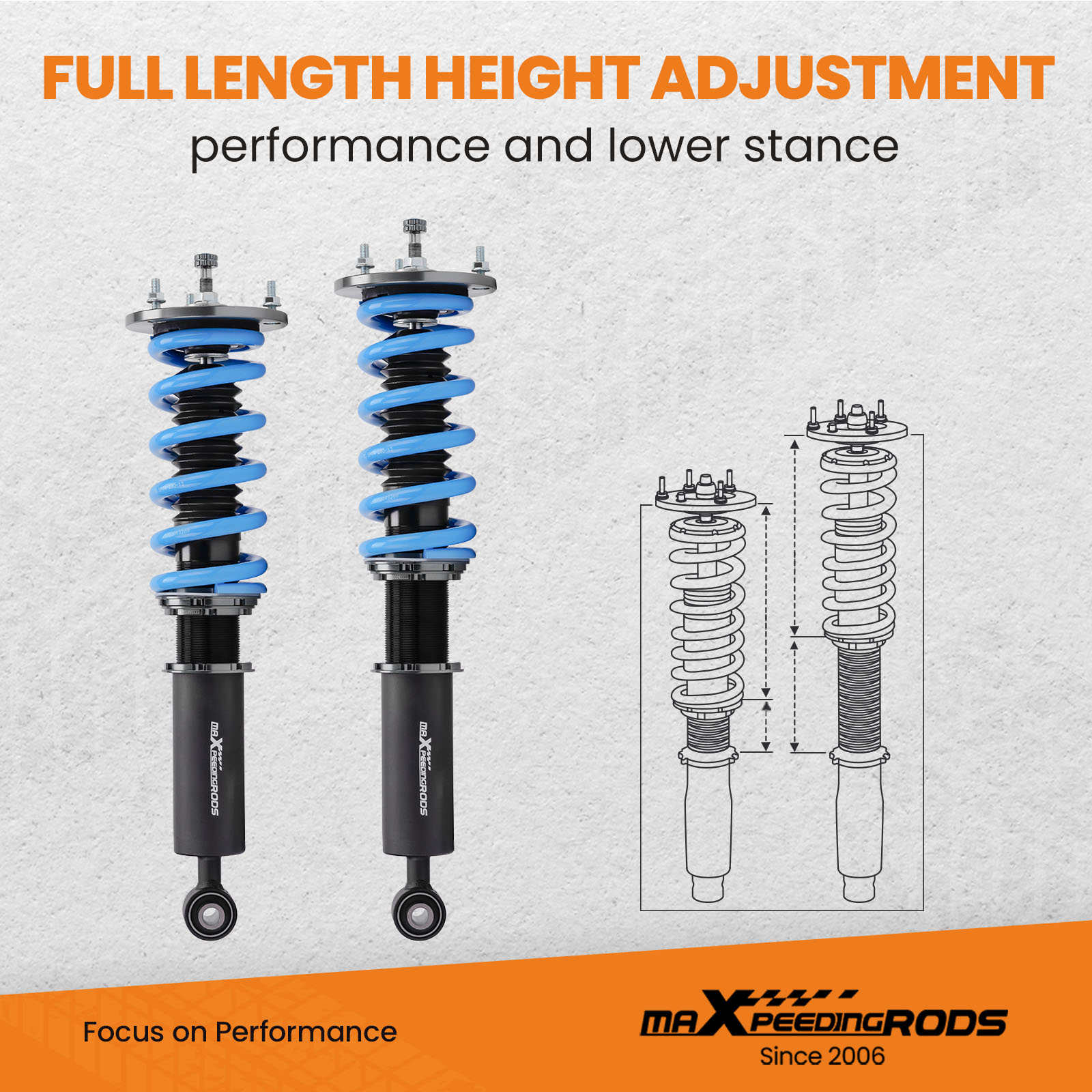

1. Lowered height adjustment from 25-75mm which allows a lower center of gravity and also adds a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

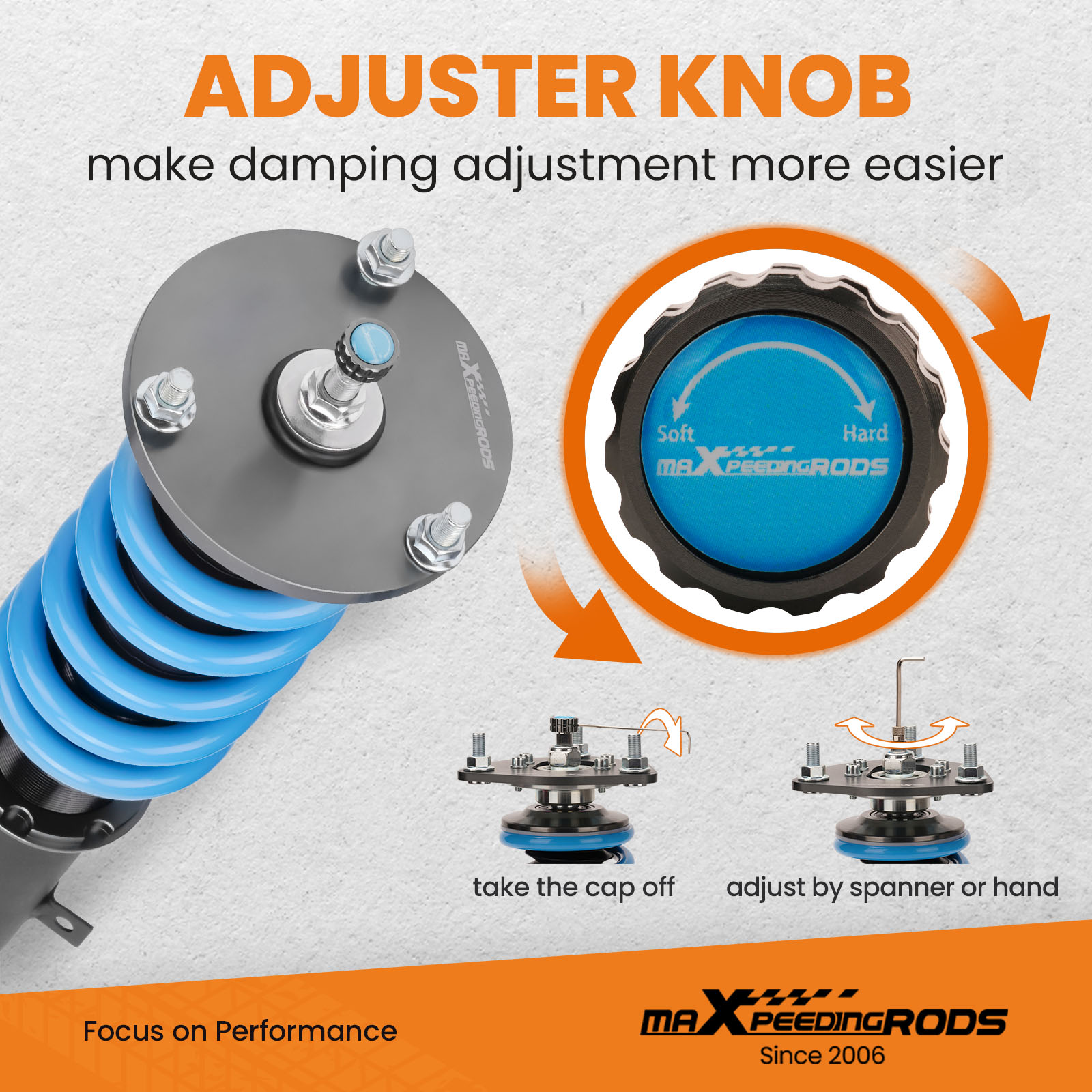

3. 24 levels adjustable damper — This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

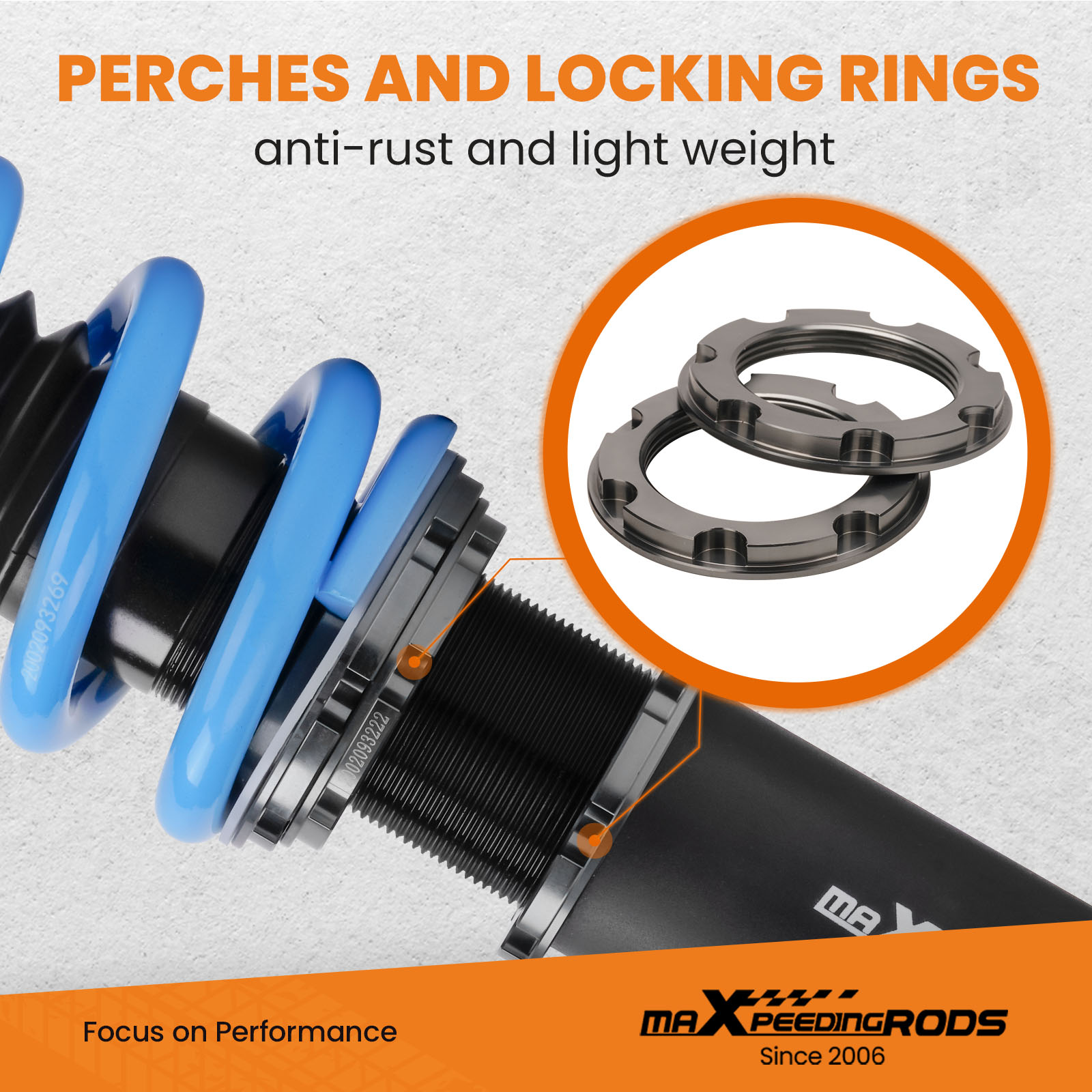

4. CNC machined Aluminum  top mounts and lockers– – excellent strength, and save weight

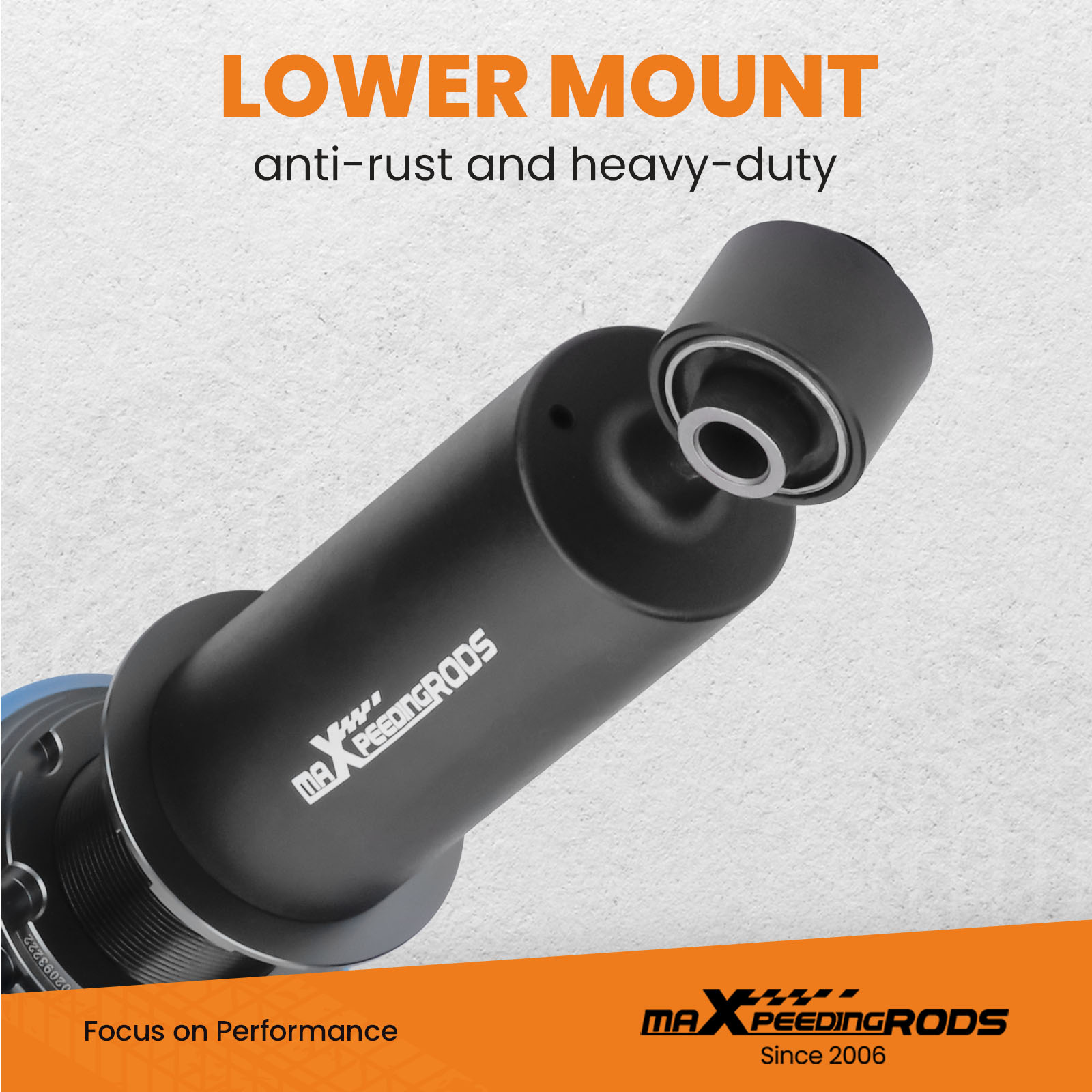

5. Heavy Duty Steel Lower Mounts— Highly Durable & Reliable

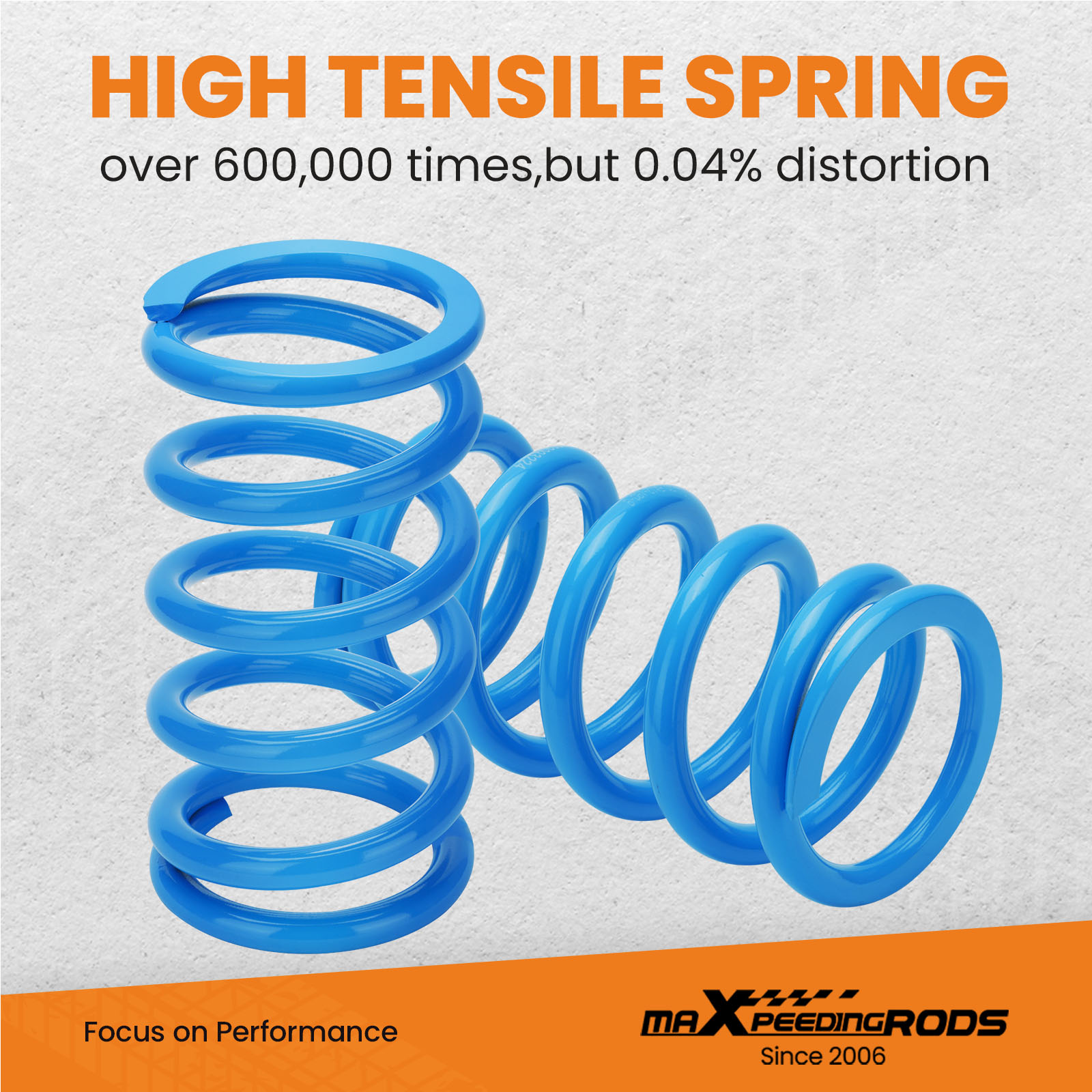

6. Upgraded spring — more than 600,000 times continuously test to assure its high tensile strength.

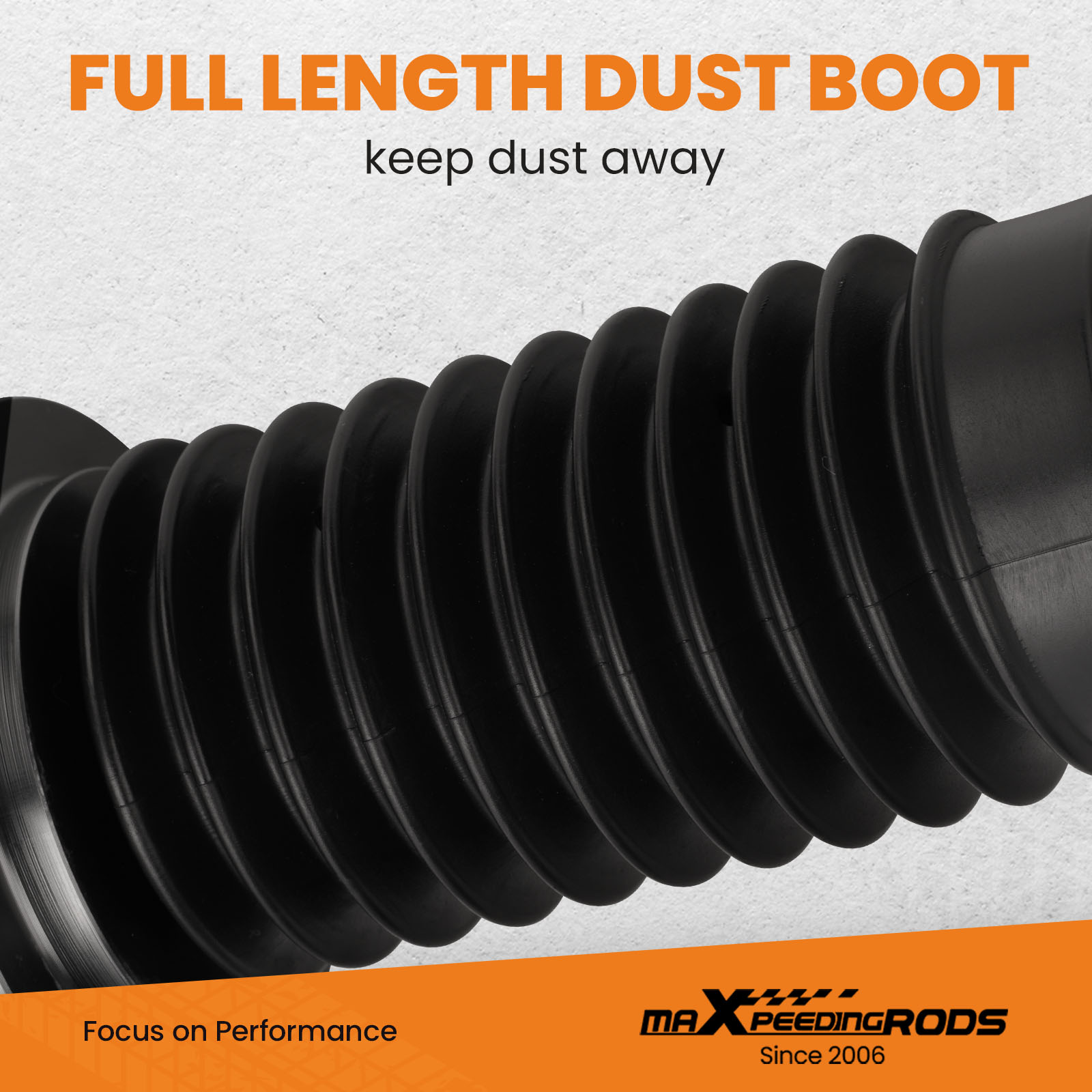

7. All inserts come with fitted long rubber boots— To protect the damper better and be durable.

8. With a better-damping setting, you will get better performance and comfort at the same time.

9. Twin-Tube structure —provides excellent handling & control characteristics for most driving conditions

10. Anti-corrosion Finish – Anodized Aluminum And Powder Coated Carbon Steel Parts

11. Test for the best—Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.

12. Clean room assembled—maintain a higher level of accuracy and reliability.

13. Upgraded damper oil—make damping more stable and smooth in a wide temperature range.

Notice

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
