TD04 Turbo compatible for Volvo XC70 XC90 S60 S80 V70 2.5L B5254T2 210HP 49377-06201 Turbocharger

Introduction

Looking to boost your car’s horsepower? Is your car’s original turbocharger not performing well or need replacing? Maxpeedingrods stocks all the best OEM-quality turbochargers and turbo parts to give your car the power, performance and reliability you deserve. Maxpeedingrods aftermarket replacement turbos provide the perfect solution by delivering a high-quality turbo at a budget-friendly price

Application

Compatible for Volvo XC70 Ocean Race Wagon 4D 2006
Compatible for Volvo XC70 Base Wagon 4D 2004-2007
Compatible for Volvo X/C Wagon 4D 2003
Compatible for Volvo XC90 2.5T Sport Utility 4D 2006
Compatible for Volvo XC90 2.5T Wagon 4D 2004
Compatible for Volvo XC90 Base Sedan 4D 2003
Compatible for Volvo V70 2.5T Wagon 4D 2005-2007
Compatible for Volvo V70 2.5T AWD Wagon 4D 2004
Compatible for Volvo V70 AWD Wagon 4D 2003
Compatible for Volvo S60 2.5T AWD Sedan 4D 2004-2005
Compatible for Volvo S60 2.5T Sedan 4D 2004-2008
Compatible for Volvo S60 AWD Sedan 4D 2003
Compatible for Volvo S80 2.5T AWD Sedan 4D 2004-2006
Compatible for Volvo S80 2.5T Sedan 4D 2004-2006

Turbo Part Number & OEM Number

4937706200, 49377-06200,
4937706201, 49377-06201,
4937706202, 49377-06202,
4937706203, 49377-06203,
4937706204, 49377-06204,
4937706210, 49377-06210
4937706212, 49377-06212
4937706213, 49377-06213
4937706214, 49377-06214
30650634, 30757679, 36002369, 36012378,
8602627, 8603226, 8627809, 8692518

Specification

Turbo Model : TD04L-14T, TD04L-14T-6.0
Engine Code: B5254T, B5254T2
Cooling Type：Water + Oil Cooling
Bearing Type: Journal Bearing
Thrust bearings: 270 Degrees
Condition: Brand New
Hosepower: Up to 210HP
Package Size:29*27*24 cm
Package Weight: 6620g
Warranty: one year warranty for any manufacturing defect

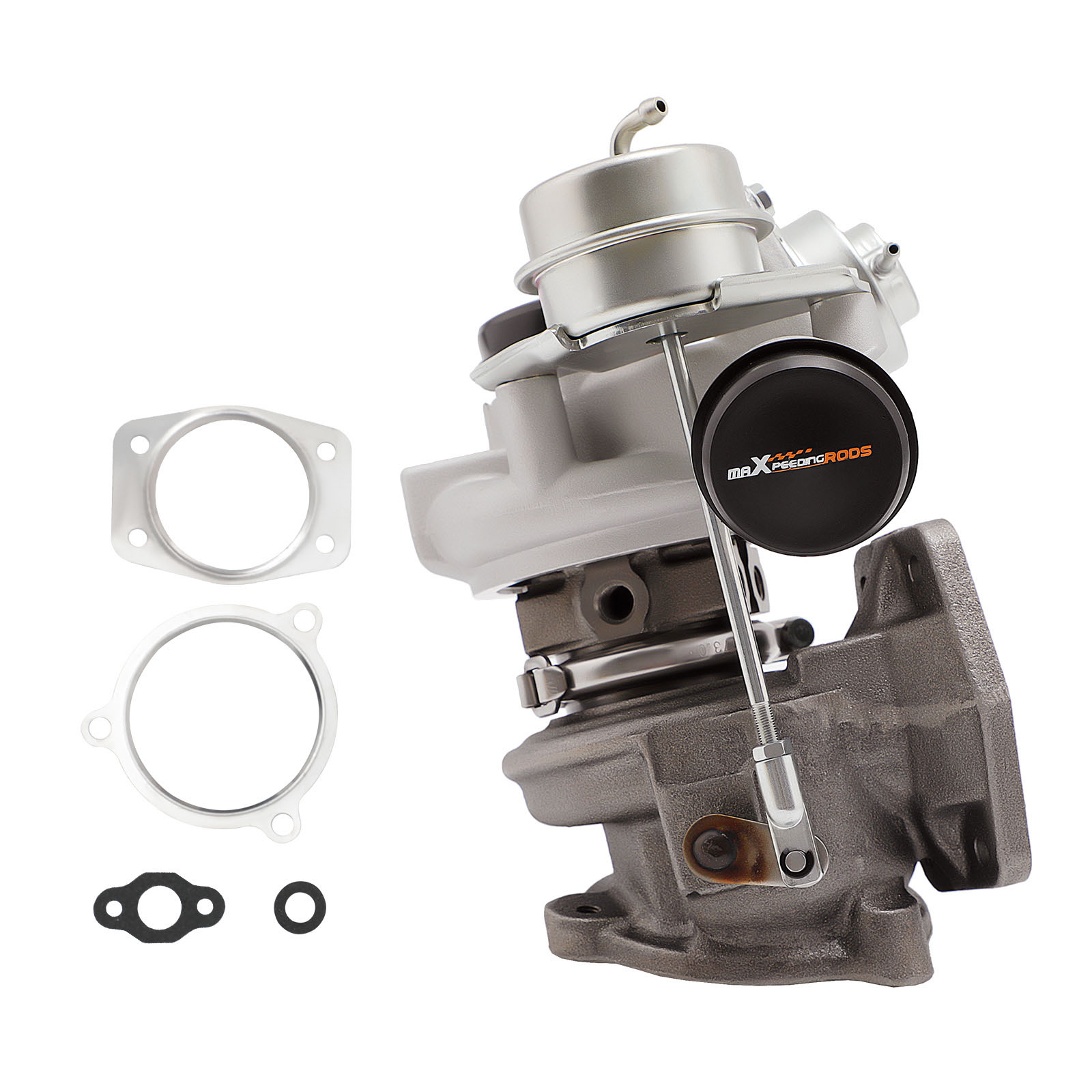

Accessories: You will receive the parts exactly as shown in the picture above

Technology Advantage

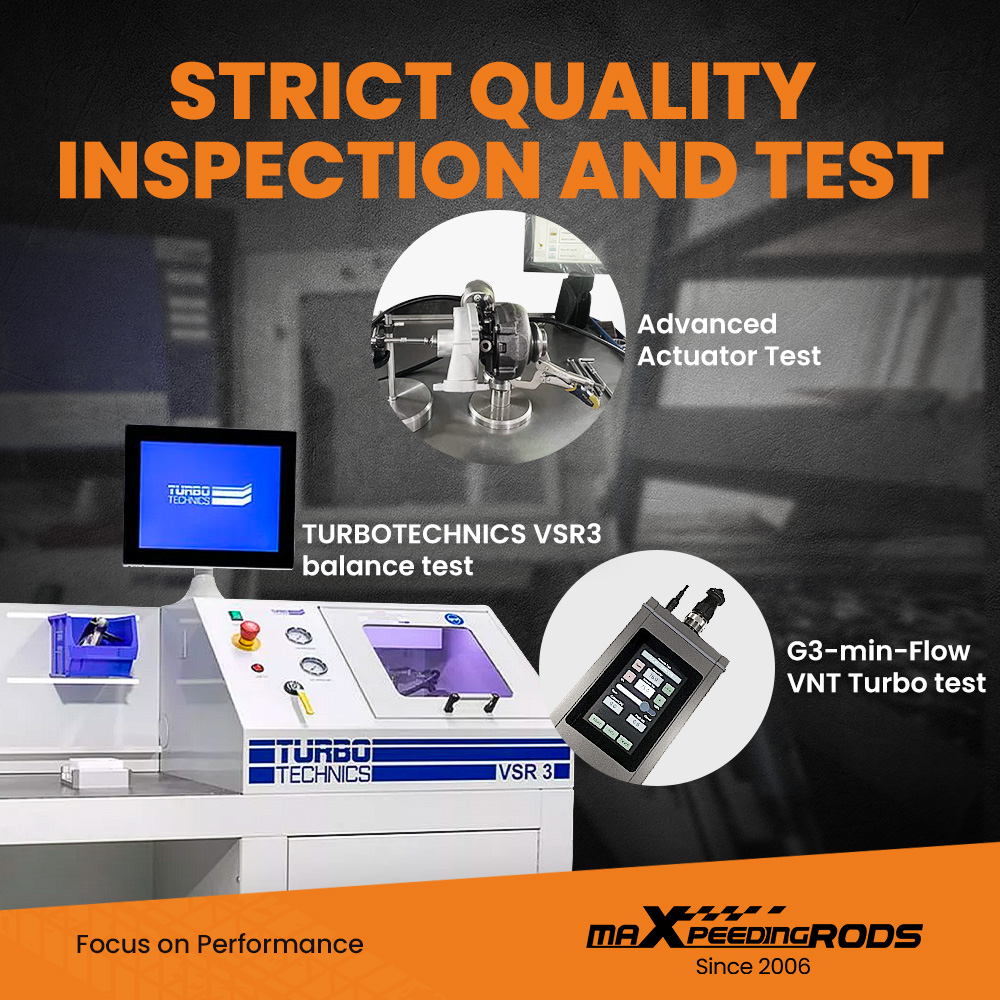

1. 100% balancing Test by TURBOTECHNICS VSR3
This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. G3-min-Flow VNT Turbo testing
The G3-min-Flow (Air) machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.
3. Advanced Actuator Tester/Programmer
Electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
