T76 Turbo compatible for Charger .96 A/R Comp .80 A/R Oil cold 500HP Floating Bearing
€260.61 - €219.00 (ex. VAT)
Easy Returns & Replacements
Any reported issues of damage in transit or DOA processed within 48hrs.
Global Tracked Shipping
Delivery is generally within 5-7 working days (UK & EU), depending on your location (AMER, 7-10 Days & APAC 10-14 Days).
1 year Manufacturer Warranty
Quality comes first and our products are designed & manufactured to last with TUV certification and E-Marked.
Application
Universal turbo for V6 compatible for V8 Cars
Perfect fit for Above 3.0L Engines, 6/8 cylinder
Specification

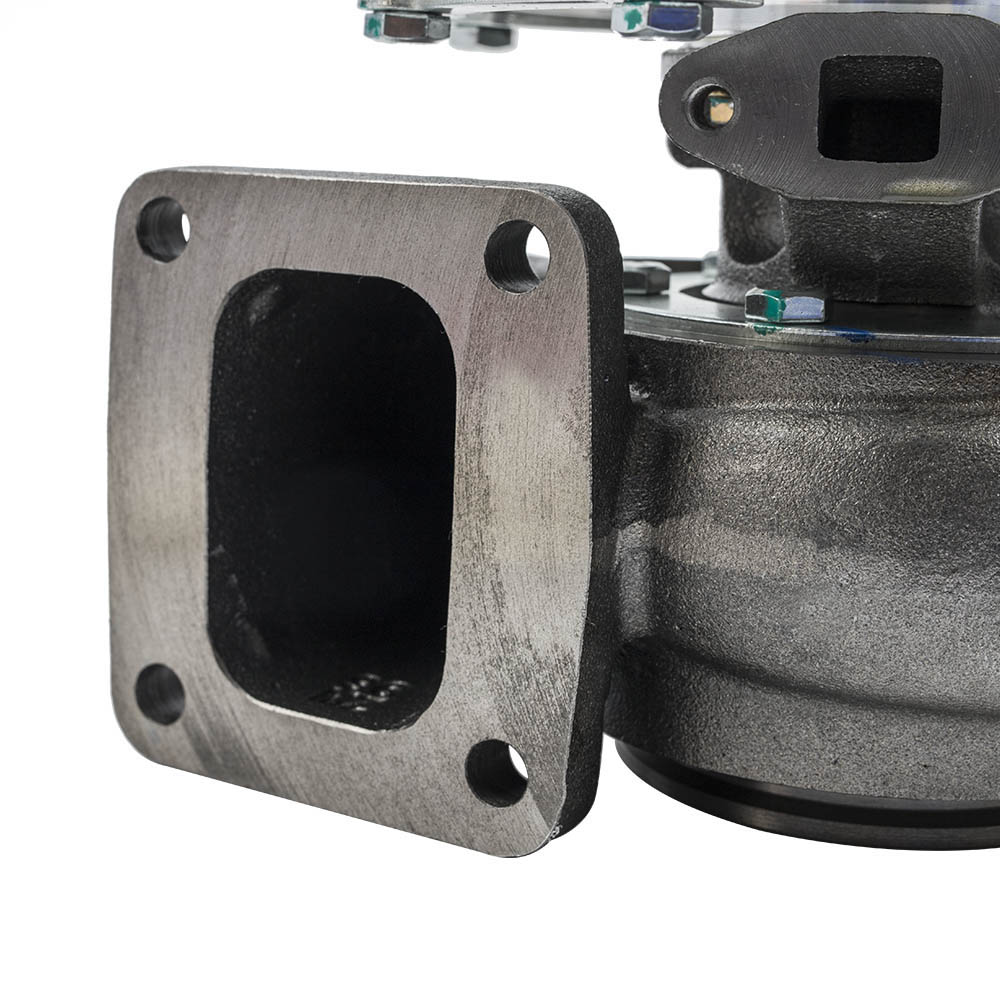

Exhaust Inlet Flange: T4 Flange
Exhaust Outlet Flange: V-Band
Turbine Inducer Diameter: 73.5
Turbine Exducer Diameter: 64.3
Turbine Trim: 76.5
Turbine A/R: 0.96

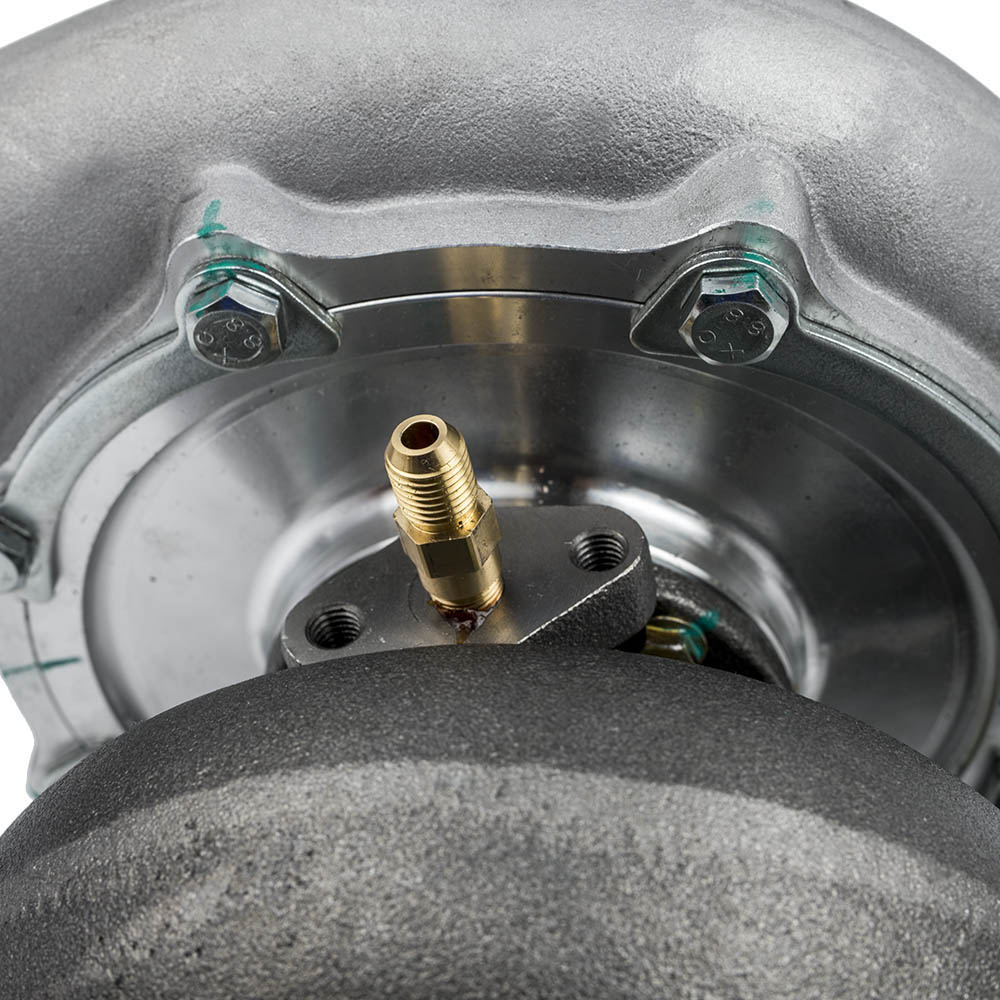

Oil Inlet: 1/8″-27

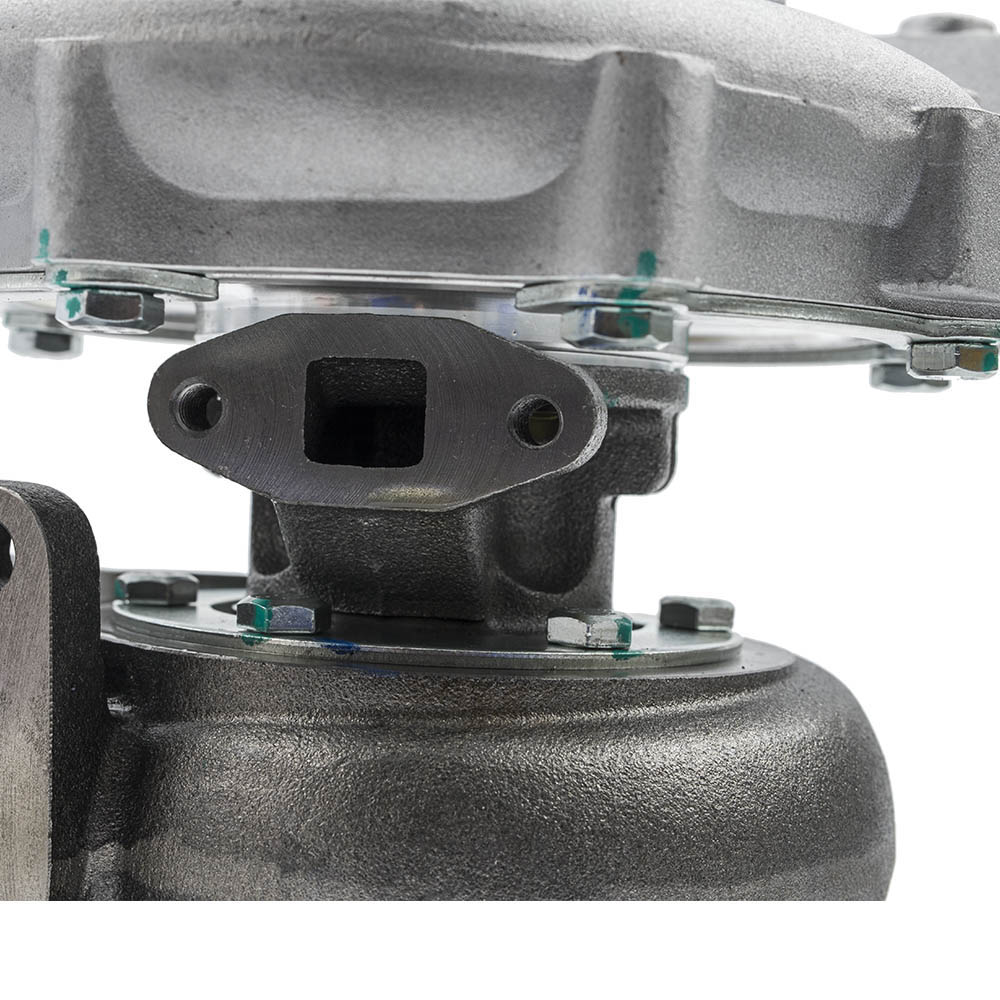

Oil Outlet: 2*M8*1.25
Compressor Trim: 56.1
Compressor Inducer Diameter: 76.6
Compressor Exducer Diameter: 102.3
Compressor Air Inlet: 130.9mm
Compressor Air Outlet: 107mm
Compressor A/R: 0.8
Inner diameter: 91.95mm
Outer diameter: 74.5mm
Bearing: Wet Float
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Turbo Type: Individual
Thrust Bearing:270 degree
Horse Power: Boost Horse Power up to 500BHP
Condition: New
Accessories: You will get exactly as shown in the picture above
Package Size: 29*27*24 cm
Package Weight: 10000 g
Package included
1xTurbocharger
1xFlange gaskets
1xOil port gaskets
Feature
*Product Material
1. Turbine housing ：Ductile iron QT450-10 – temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy – high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
*Product Performance
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note
* Replace, repair or reconnect air cleaner element per manufacturer’s manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Warranty: one year warranty for any manufacturing defect
| Weight | 10 kg |
|---|---|
| Dimensions | 29 × 27 × 23.5 cm |
