Application
Quantity : 1 unit T3/T04e (V-BAND) TURBOCHARGER + 1 unit exhaust inlet Manifold + 1 set oil inlet oil return lines kits
Turbo Suitable for:
Perfect for all 4 or 6 CYL, 2.0L-3.5L engines
Cooling Type: Oil Cooled Wastegate Internal
Horse Power: Horse Power Boost up to 420HP
Manifold Suitable for:
Compatible for Nissan Safari / Compatible for Patrol 4.2L TD42
for TB42, TB45, TD45, this manifold may also fit; as far as we know, the port configurations are the same. Please double check the dimensions with us before buying.
Oilline Suitable for:
for T3, T3 / T4, T4, T70, T66, etc. Oil Cooled Turbochargers
Specification
Compressor
Compressor Trim: 44
Compressor Inducer Diamter: 50.5 mm
Compressor Exducer Diamter: 76 mm
Compressor A/R: 0.5
Turbocharger Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: V-Band Flange
Turbine Trim:73
Turbine Inducer Diamter: 65.5 mm
Turbine Exducer Diamter: 55.9 mm
Turbine A/R: 0.63
Manifold Specifics：
Turbo Flange : T3 flange
Mount Type: top mount / high mount
External Wastegate: 38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)

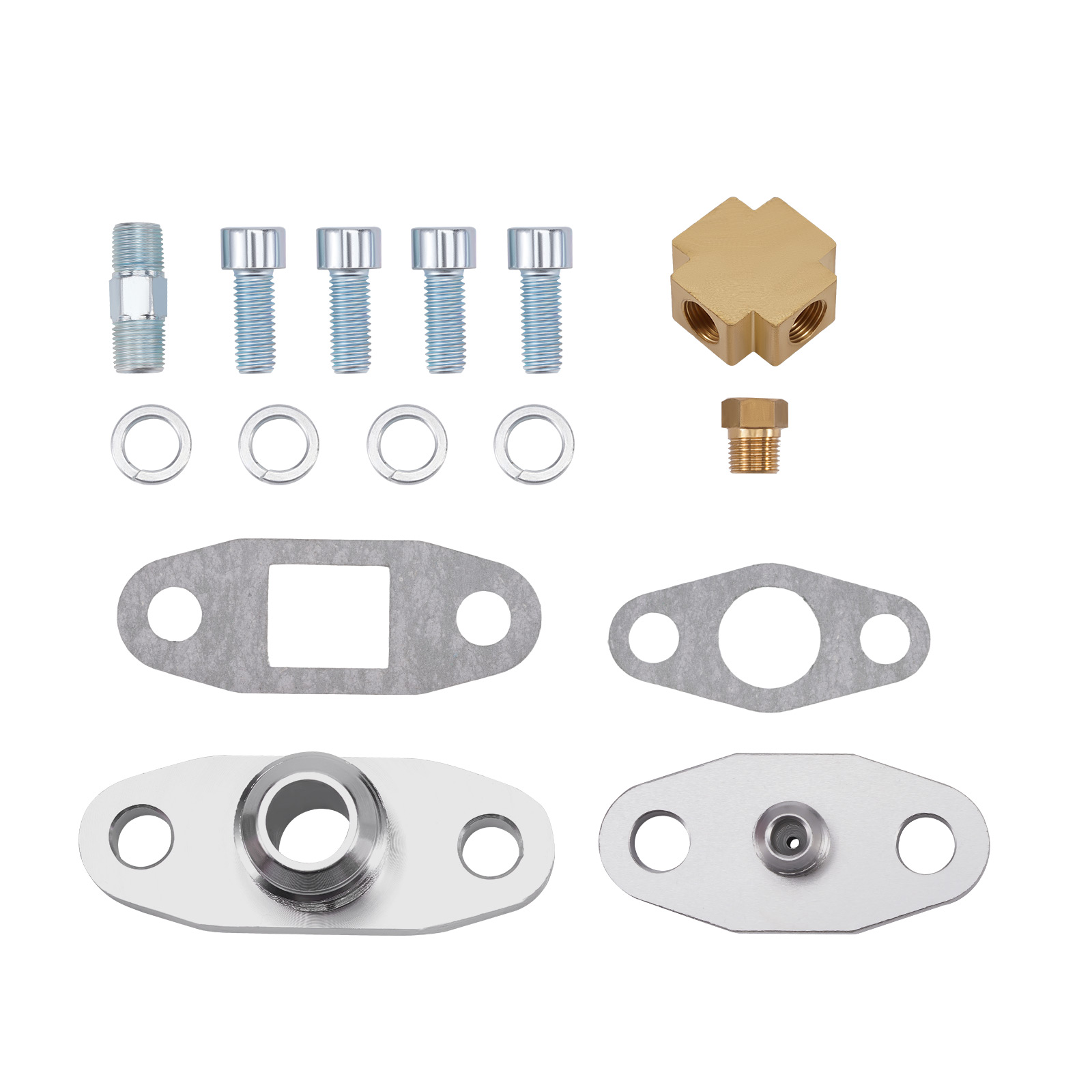

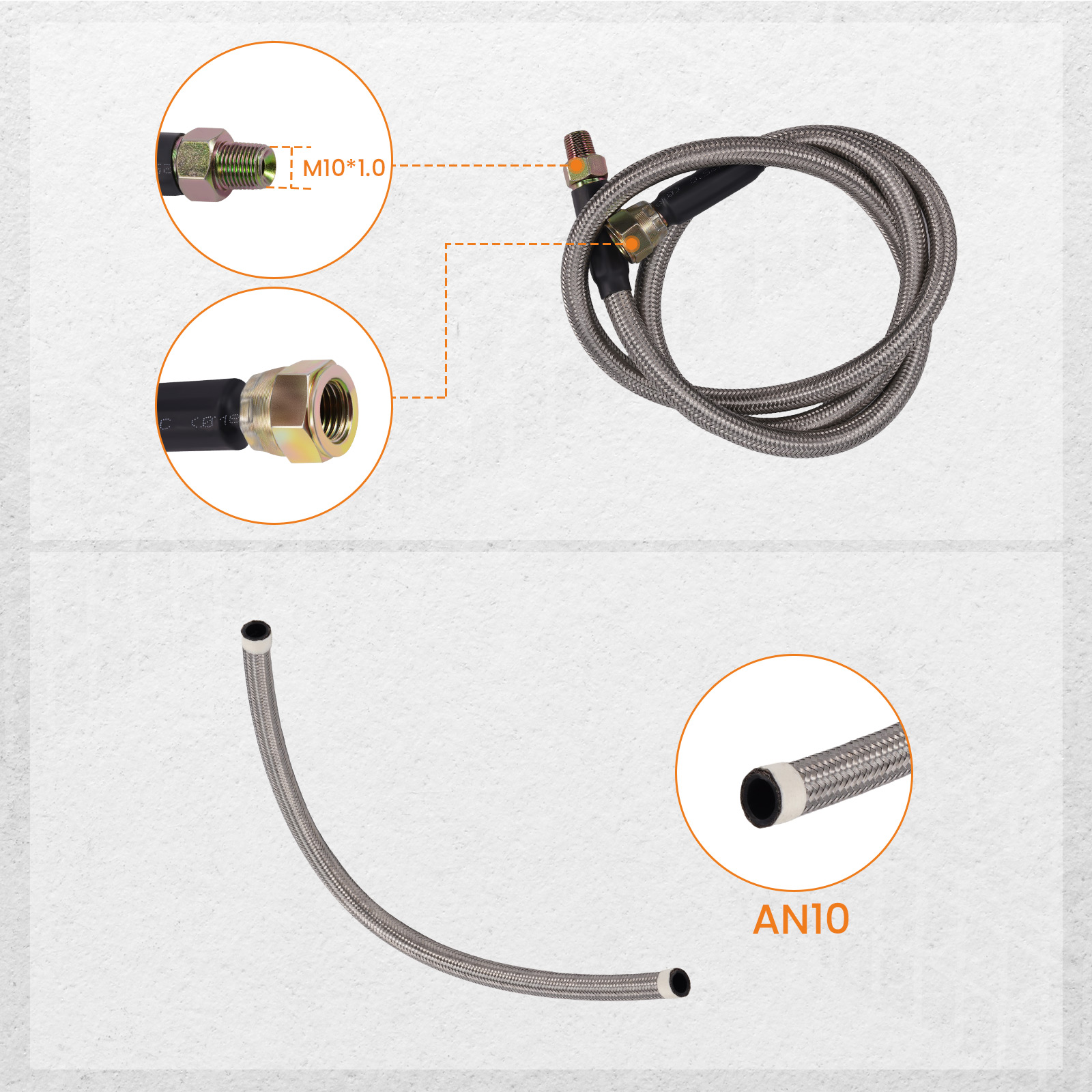

Oil Line Specifics：
Oil return line length: 550mm
Oil return line inner diameter: ¢21
Oil feed line length: 1000mm
Oil feed line inner diameter: ¢14
Hose end fitting: 10 AN
Material: High Strength Steel with Aluminum Material
Features
– New
– Specific design to increase the volumetric efficiency of the engine, resulting in a gain in power output.
– Improve Exhaust Gas Flow and Increase Turbo Spool up and Reduces Turbo Lag
– Manufactured from high quality cast iron for durable usage
– Continuous tests under extreme conditions to withstand high temperature
– Special surface treatment to resist corrosion.
– Accurate dimensions with exquisite workmanship
– Tubes sized and shaped to match cylinder-head exhaust port
Note
This is a universal kit. Not all the component parts will be directly bolt on your car.
You may still need some accessaries of your OEM oil line kit.
* No instruction will be included; professional installation and alignment is suggested.
* For any needs please contact us.
Warranty: one year warranty for any manufacturing defect
| Weight | 0.8 kg |
|---|---|
| Dimensions | 27.7 × 27.7 × 7 cm |
