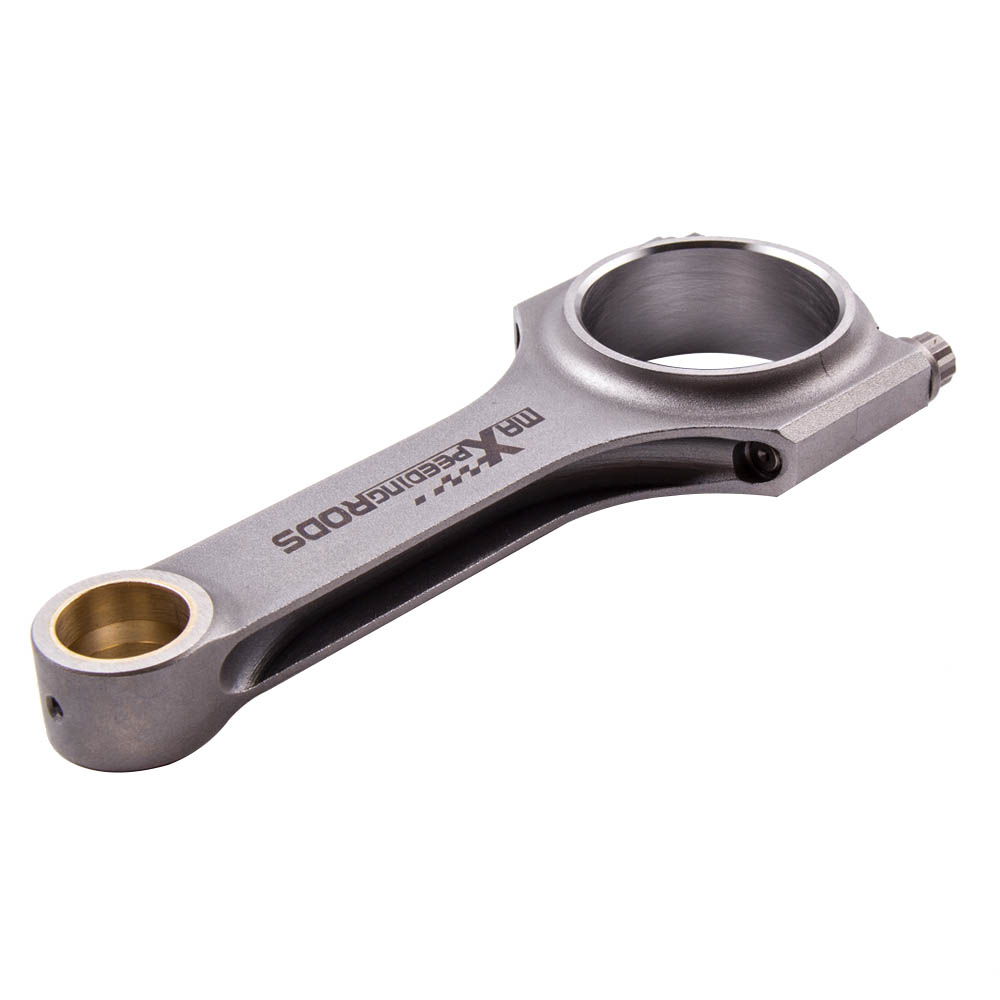

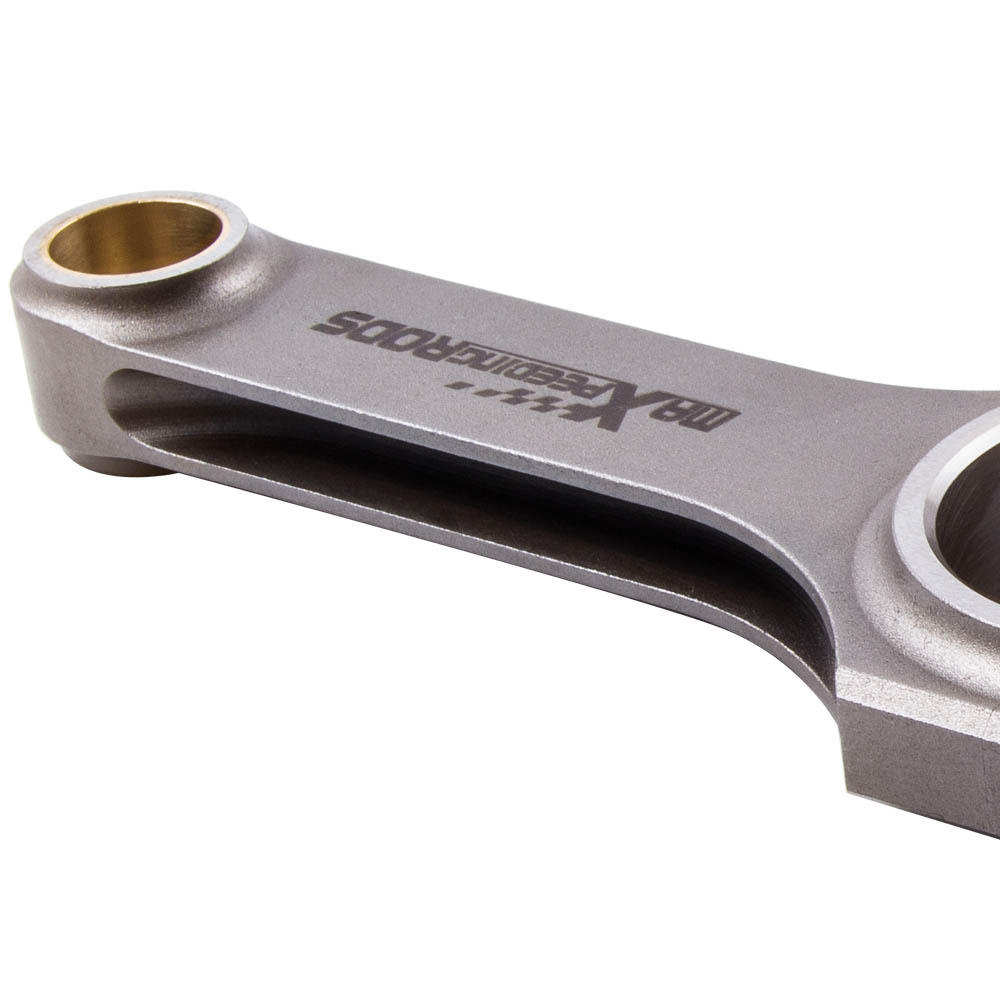

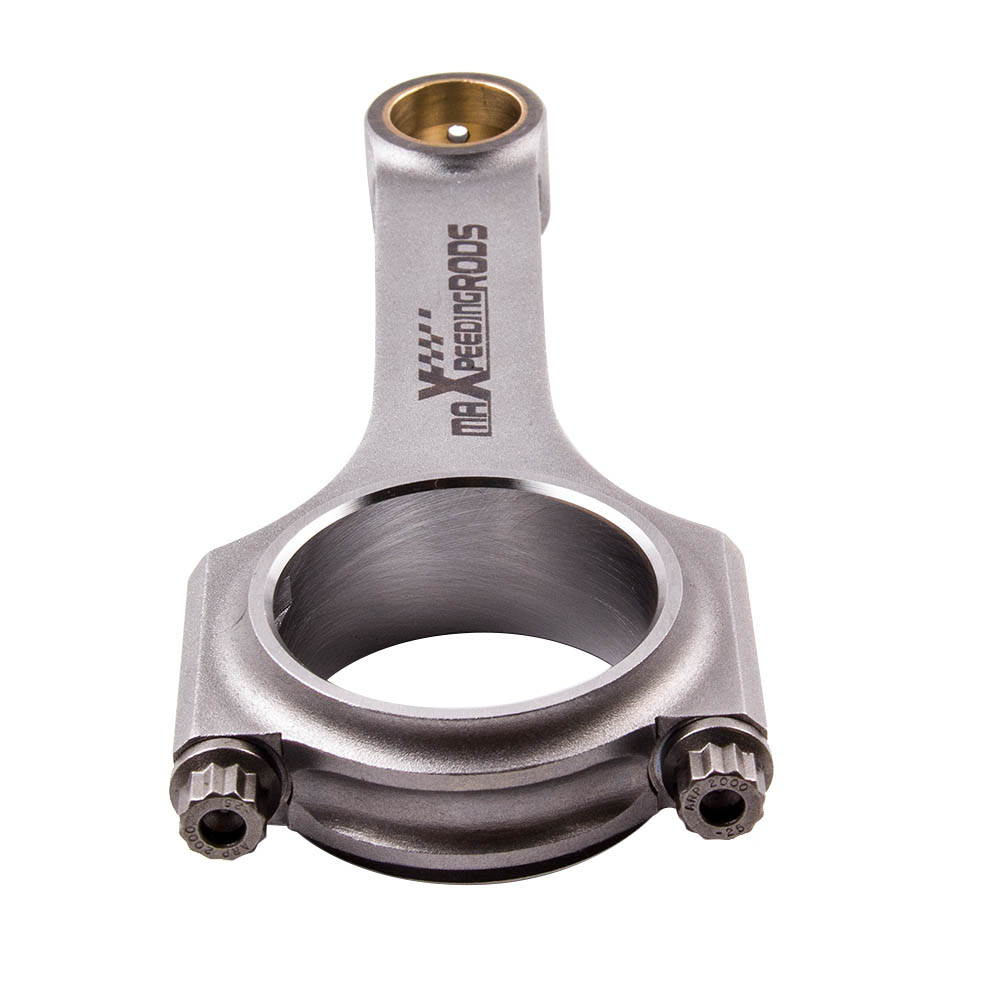

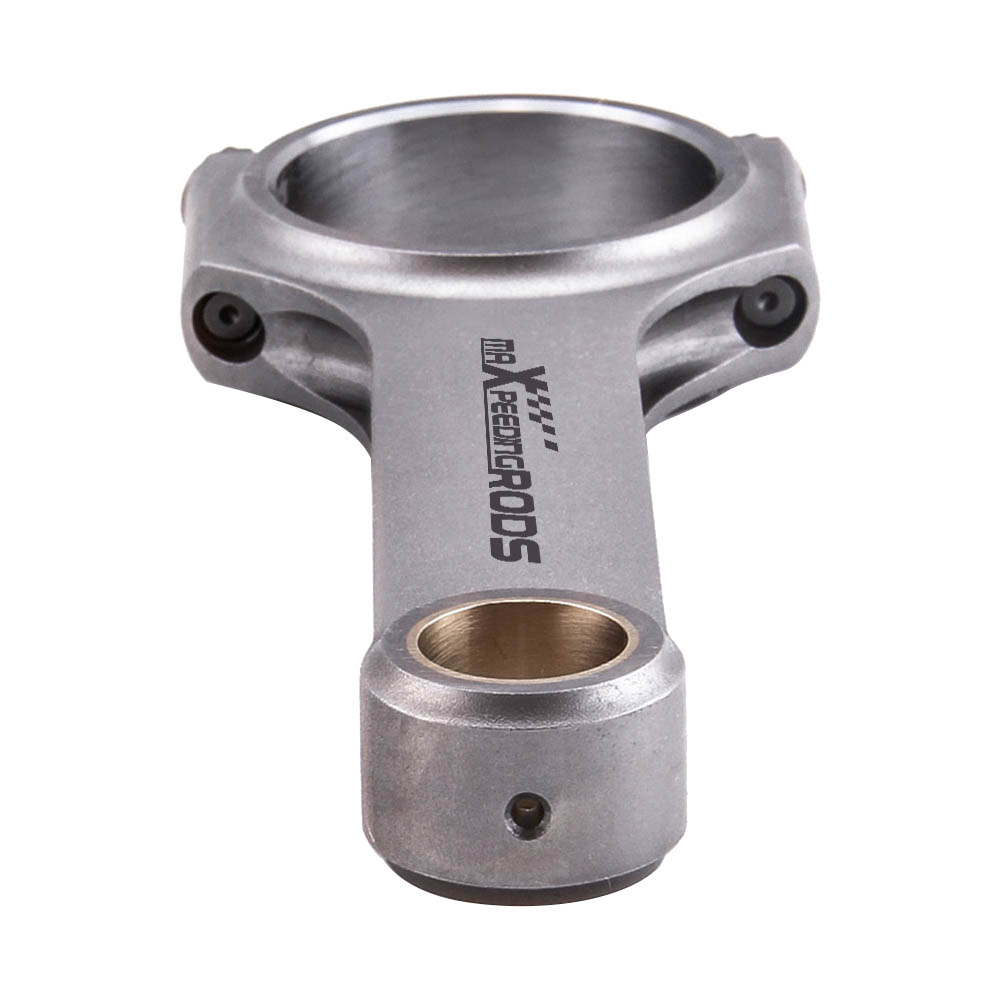

4x Forged 4340 EN24 Connecting Rods Conrods Compatible for Acura Honda D16/ ZC 138.63mm

Name: 4x Forged 4340 EN24 Connecting Rods Conrods Compatible for Acura Honda D16/ ZC 138.63mm
SKU: 3002912820
Price: 414.00 EUR
Availability: InStock

€492.66 - €414.00 (ex. VAT)

Select delivery location

Add to wishlist

Compare

SKU: 3002912820 Category: Compatible for Honda Conrods

Easy Returns & Replacements

Any reported issues of damage in transit or DOA processed within 48hrs.

Global Tracked Shipping

Delivery is generally within 5-7 working days (UK & EU), depending on your location (AMER, 7-10 Days & APAC 10-14 Days).

1 year Manufacturer Warranty

Quality comes first and our products are designed & manufactured to last with TUV certification and E-Marked.

Application

Compatible for Acura & Compatible for Honda D16 / ZC
Compatible for Honda Civic (EX, EX) 1988 – 2000
Compatible for Honda Civic del Sol (Si, Si) 1993 – 1997
Compatible for Honda CRX (Si, Si) 1988 – 1991
Pin Type: Floating Pin Piston
Note:Center to center length:138.63mm/5.458″

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

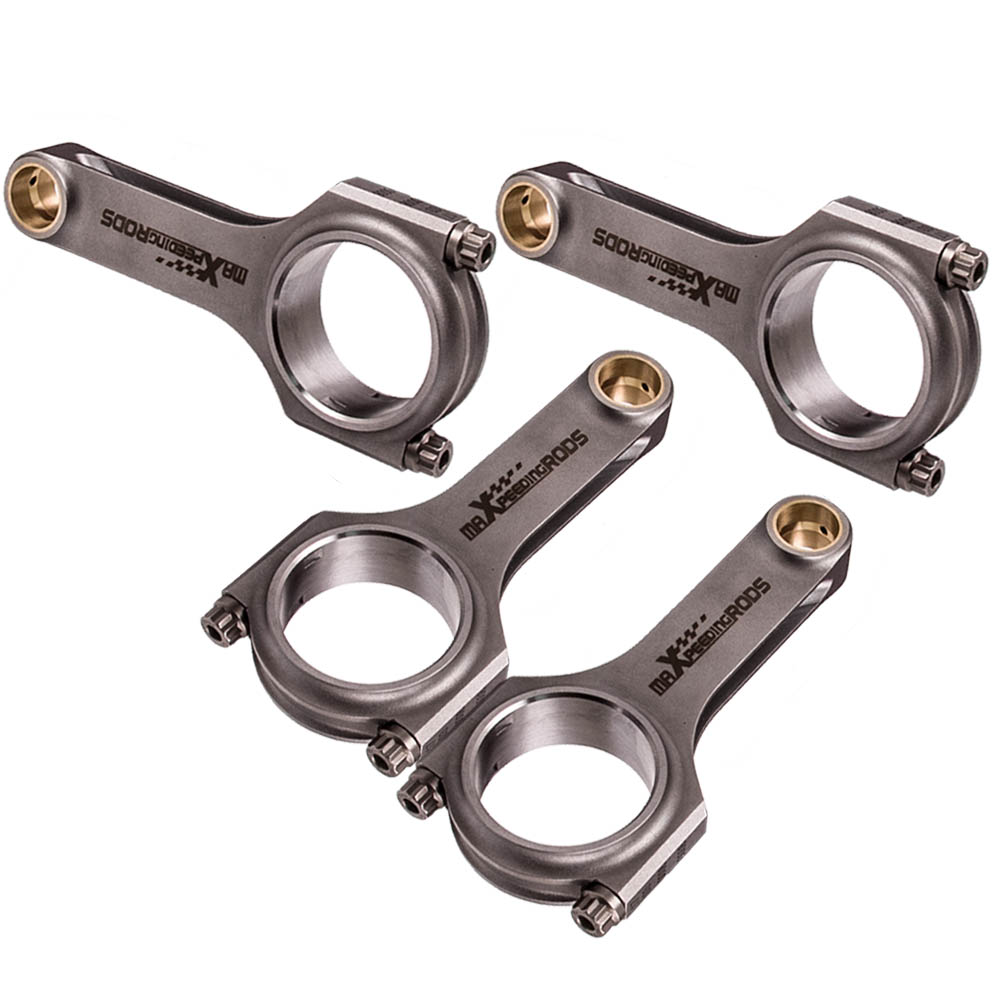

*H-beam Conrods Quantity: 4 Pieces as showing in picture

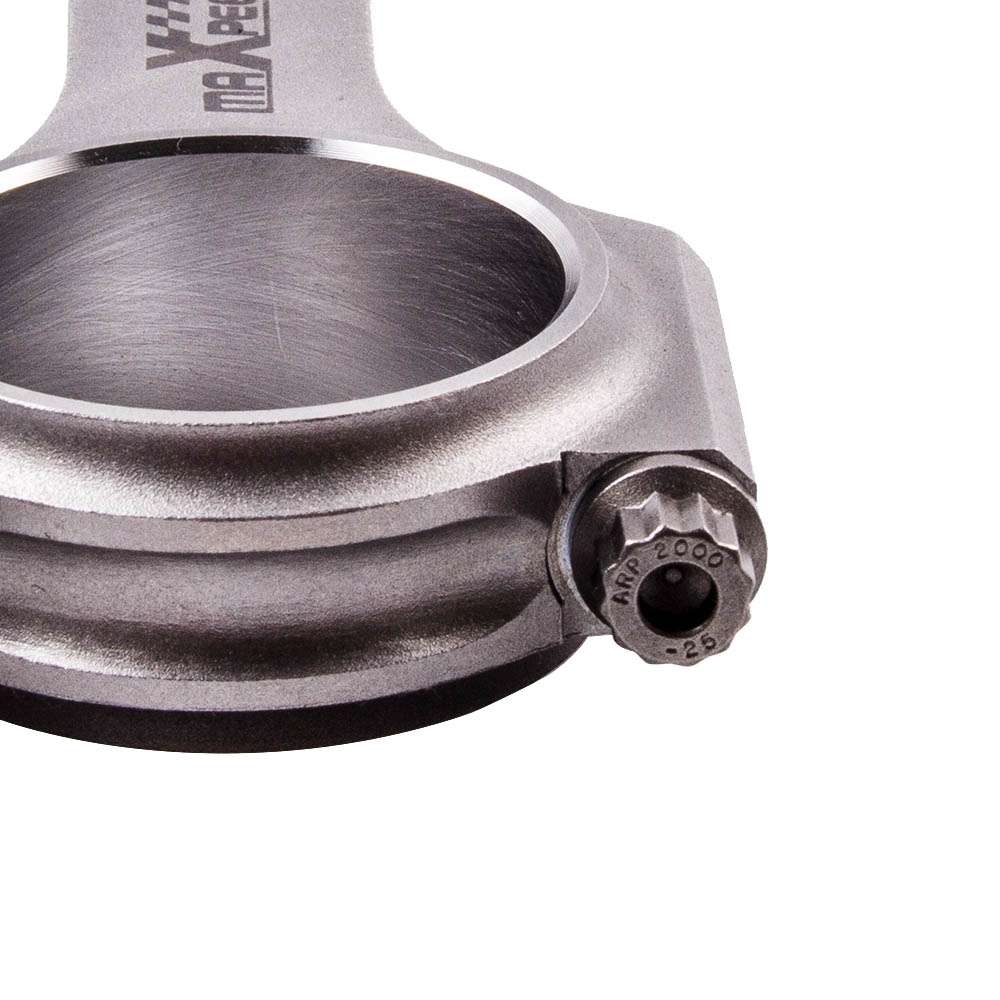

*Bolts: Including ARP 2000 3/8″ bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package sizeï¼š28CM*21CM*10CM

Dimension

Center to center length:138.63mm/5.458″
Big end diameter:48mm/1.89″
Small end diameter:19mm/0.748″
Big end width:22.8mm/0.898″
Small end width:18.2mm/0.717″

Feature

1. TÃœV PRODUCT TEST AND TÃœV ISO 9001 CERTIFIEDï¼›
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racingï¼›
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgradeï¼›
4. H-Beam design reduces weight without compromising strengthï¼›
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risersï¼›
6.High precision CNC machined,Precision rod cap alignment dowelsï¼›
7.Bores finished to +/- .01 mmï¼›
8.Balanced to within +/- 1 g per rodï¼›
9. Each rod is magnetic particle tested to ensure free of flawsï¼›
10.Use X-rayed, sonic testedï¼›
11.Custom Service.

Note

*Professional installation is highly recommendedï¼›
*Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

Warranty: one year warranty for any manufacturing defect

Weight	2.6 kg
Dimensions	28 × 20 × 10 cm
